MAX - FLO Series Industrial Housings

Trinity Max-FLO Industrial housings have 6 bar operating pressure as standard (other pressure design are also available). These housings can accommodate DOE & SOE spring seal assembly as standard design for quick removal of cartridge(s). ASME section Div 1 design code option availiable.

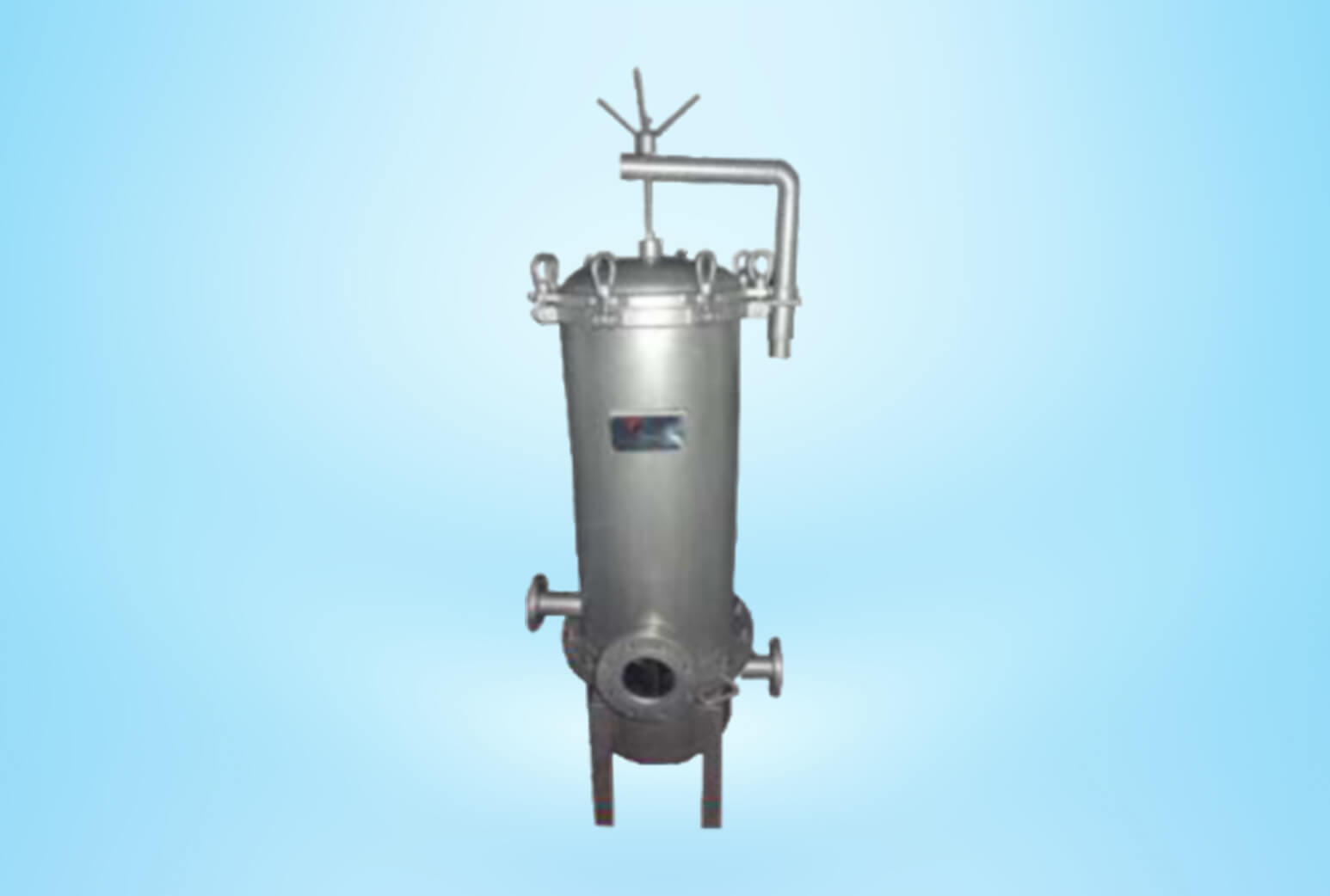

series-industrial-housing
KEY FEATURES & BENEFITS
  • Single, Multiround Cartridge design
  • Duplex units are also available on request
  • CE, ASME Code stamp compliant design
  • Positive sealing with swing bolt closure design
  • Quick assembly and disassembly
  • Aqueous Flow rates up to 4500 GPM or more
  • Unique cup design to accommodate both Double open end (DOE) and 222-'O' ring style SOE cartridges without modification in the housing
MATERIAL OF CONSTRUCTION : INDUSTRIAL
MOC SS 304/L, SS 316/L, CS / CS with rubber lining , GRP, Duplex Steel, Monel®, Hastelloy ®.
Bolt for Top Body Cover Swing bolts (Std.) Bolts / Studs (ASTM A 193 Gr B7) & Nuts (ASTM AA194 Gr 2H) - optional, Quick Closure Clamp with Hydraulically assisted Davit - optional at extra cost
O Ring Nitrile, Silicone, Viton, EDPM, EPR
Gauge Vent Connection Standard (Pressure Gauge - optional at exira cost)
Drain & Vent Port Standard for all Housings
Cartridge Range 9.75" to 40"
