Oil Purification Systems

Oil Purification Systems

TRINITY OIL PURIFICATION SYSTEMS can be used directly as an ON-LINE or OFF-LINE system depending on your shop-floor need. Trinity Oil Purification systems allow filtration to take place independently of your equipment/machinery operation and there is no need for permanent installation per machine as one trolley/skid-mounted unit can service multiple machines.

KEY FEATURES & BENEFITS

• Particle Removal - Coarse filtration application.

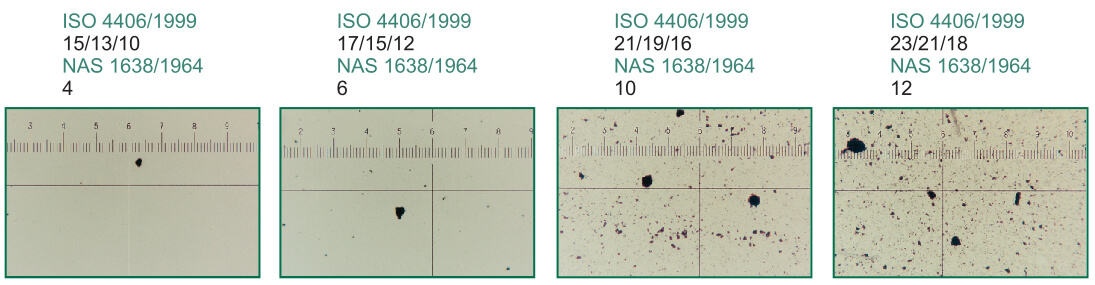

• Particulate removal to meet NAS Cleanliness standards.
• Water Removal-All Free Water and > 99.9% emulsified / dissolved water removed.
• Improved Reliability-75% - 80% of hydraulic problems are related to inadequate contamination control practices.
• Longer Service Intervals
• Reduced Down time.
• Higher Asset Availability.

Type I:Particulate Filtration

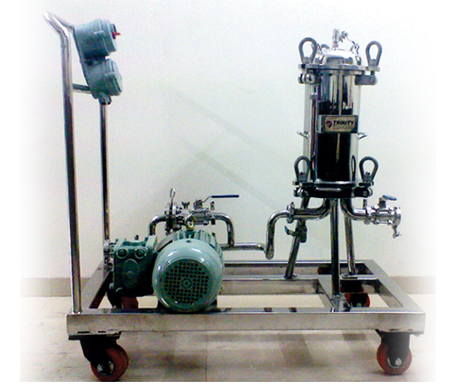

This unit consists of a two stage filtration system. 5 Micron Resin Bonded Cartridges as a Pre-filter followed by 1 Micron Resin Bonded Cartridges as a final filter. Along with Pump with motor mounted on a Trolley / Skid & interconnecting piping with valves.
Standard Flow Rates : 4LPM, 12 LPM, 25 LPM, 50 LPM, 100 LPM
(Higher Flow rates can be customized to suit a particular requirement.)

Type II: NAS Standard Oil Purification Systems

This unit consists of a two stage filtration system. 5 Micron Flow-Max series High Flow filter elements as a Pre-filter followed by 1 Micron Flow-Max series High Flow filter elements as a final filter. Along with Pump with motor mounted on a Trolley / Skid & interconnecting piping with valves.
Standard Flow Rates : 25 LPM, 50 LPM, 100 LPM
(Higher Flow rates can be customized to suit a Particular Requirement.)

Type III: Water/Moisture Removal Systems

This Unit includes Cardev SDU-H350 Housing with SDFC Cartridge designed to suit your flow rate. Pump with motor mounted on a Skid / Trolley & interconnecting piping with valves.
Standard Flow Rates : 4LPM, 8 LPM, 16 LPM, 32 LPM
Systems can be customized with additional Pre Filter.

Benefits : Removes water and particle contamination, maintaining Oil in “CLEANER THAN NEW" condition.

• Oil filtered whilst the system runs - clean the entire system, not just the Oil in reserve.
• Improved machine reliability & availability.
• Extended Oil Life.
• Reduced waste Oil.
• Reduced component wear.
