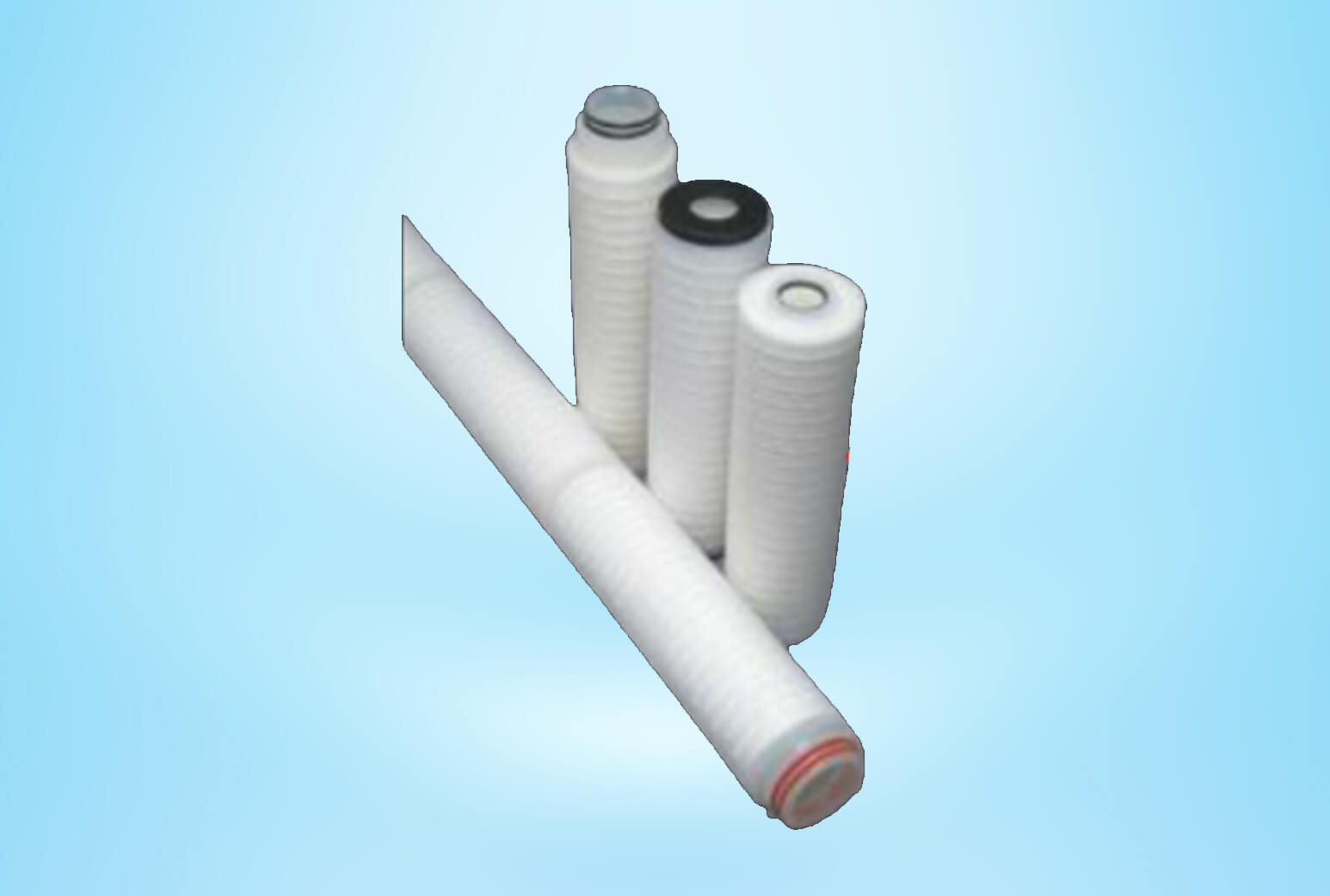

Pleated Filter Cartridges
At Trinity Filter, we specialize in manufacturing and supplying a comprehensive range of pleated filter cartridges designed for high-efficiency filtration across diverse industries. Our cartridges offer superior dirt-holding capacity, longer service life, and excellent compatibility with a wide range of liquids and gases.
As a trusted pleated filter cartridge manufacturer and supplier, we offer solutions that meet the filtration needs of industries such as pharmaceuticals, food & beverages, water treatment, chemicals, and more.
KEY FEATURES & BENEFITS
Filter Specifications of Pleated Filter Cartridge
| Media |
Polypropylene, Glass Fibre |
| Inner Core |
Polypropylene, Glass fibre |
| End Caps & Cage |
Polypropylene |
| Gaskets & O rings |
Buna N, EPDM, Silicne, Viton, Teflon Encapsulated Viton |
| Micron Ratings |
0.2,0.3.0.45,0.6,1.0,1.2,2.0,2.5,4.0,5.0, 6.0, 10,20, 40 & 50 ym |
Dimensions and Operating Conditions
| Nominal Length |
9.75",10", 20", 30", 40" |
| Outside Diameter |
2.7" (70 mm) |
| Inside Diameter |
1.1" (28 mm) |
| Recommended Change out differntial pressure |
35 PSID |
| Maximum Differential pressure |
75PSID (@21°C), 40 PSID (@ 80°C) |
Filter Removing Efficiency
Betaratio=> 1000 (99.9% efficiency)
The removal ratings/efficiency and beta ratio value levels were determined through laboratory testing and can be used as a guide for selecting cartridges and estimating their performance. Under actual field conditions, results may vary somewhat from the values shown due to the variability of filtration parameters. Testing was conducted using the single-pass test method, water at 3 GPM / 10" cartridge. Contaminants included latex beads, coarse and fine test dust. Removal efficiencies were determined using dual laser source particle counters.
Sanitization / Sterilization
| Filtered Hot Water |
80°C for 30 minutes. |
| Steam Sterilization |
121°C for 30 minutes, multiple Cycles. |
| Chemicals |
Cartridges are chemically compatible with most chemicals and sanitizing agents. |
Note : Stainless Steel insert option needed for all cartridges being hot water sanitised or steam sterilized
Types of Pleated Filter Cartridges We Offer
- Polypropylene Pleated Filter Cartridges :
These filters are made from 100% pure polypropylene media, making them ideal for chemical and water filtration. Our pleated polypropylene filter cartridges exhibit excellent resistance to acids, alkalis, and solvents, making them suitable for aggressive fluid applications.
- Pleated Cellulose Filter Cartridge :
Constructed from high-quality cellulose media, these cartridges are best suited for filtering non-aqueous fluids like oils, fuels, and solvents. They offer cost-effective performance in less demanding applications.
- Pleated Membrane Filter Cartridge :
Engineered for precision filtration, pleated membrane filter cartridges are ideal for applications requiring absolute retention ratings. These are widely used in pharmaceutical and biotechnology industries for sterile filtration.
Key Features of Pleated Filter Cartridges
- High surface area for extended life and low-pressure drop
- Available in various micron ratings: 0.2µm to 50µm
- Wide chemical compatibility
- Easy installation and replacement
- Compatible with standard filter housings
- Constructed using FDA-compliant materials
- Suitable for pre-filtration and final filtration
Applications of Pleated Filter Cartridges
- Water Purification : Our pleated water filters are ideal for municipal and industrial water treatment systems.
- Pharmaceutical Processing
- Food & Beverage Filtration
- Chemical Processing
- Electronics & Semiconductor Industry
- RO Pre-filtration Systems
Whether you’re looking for a pleated water filter cartridge for domestic water systems or high-performance filters for industrial applications, we offer tailor-made solutions to suit your exact filtration requirements.
Frequently Asked Questions (FAQs)
A pleated filter cartridge is a depth-type filter that uses pleated media to increase the surface area for filtration. This design enhances dirt-holding capacity and improves flow rates.
Polypropylene pleated filter cartridges offer excellent chemical compatibility, are non-toxic, and are suitable for a wide range of industrial applications, including water, acids, and solvents.
In most cases, pleated filter cartridges are not designed for reuse. However, depending on the application and contamination levels, they may be cleaned and reused a limited number of times.
Pleated membrane filter cartridges are commonly used in pharmaceutical, biotech, and laboratory environments where sterile filtration and precise particle retention are critical.
Pleated cellulose filter cartridges are best suited for less aggressive fluids like oils and fuels. They are typically more economical but offer lower chemical resistance than synthetic options.
Yes, we offer customized micron ratings and sizes based on your filtration requirements. Please contact our technical team for more details.
