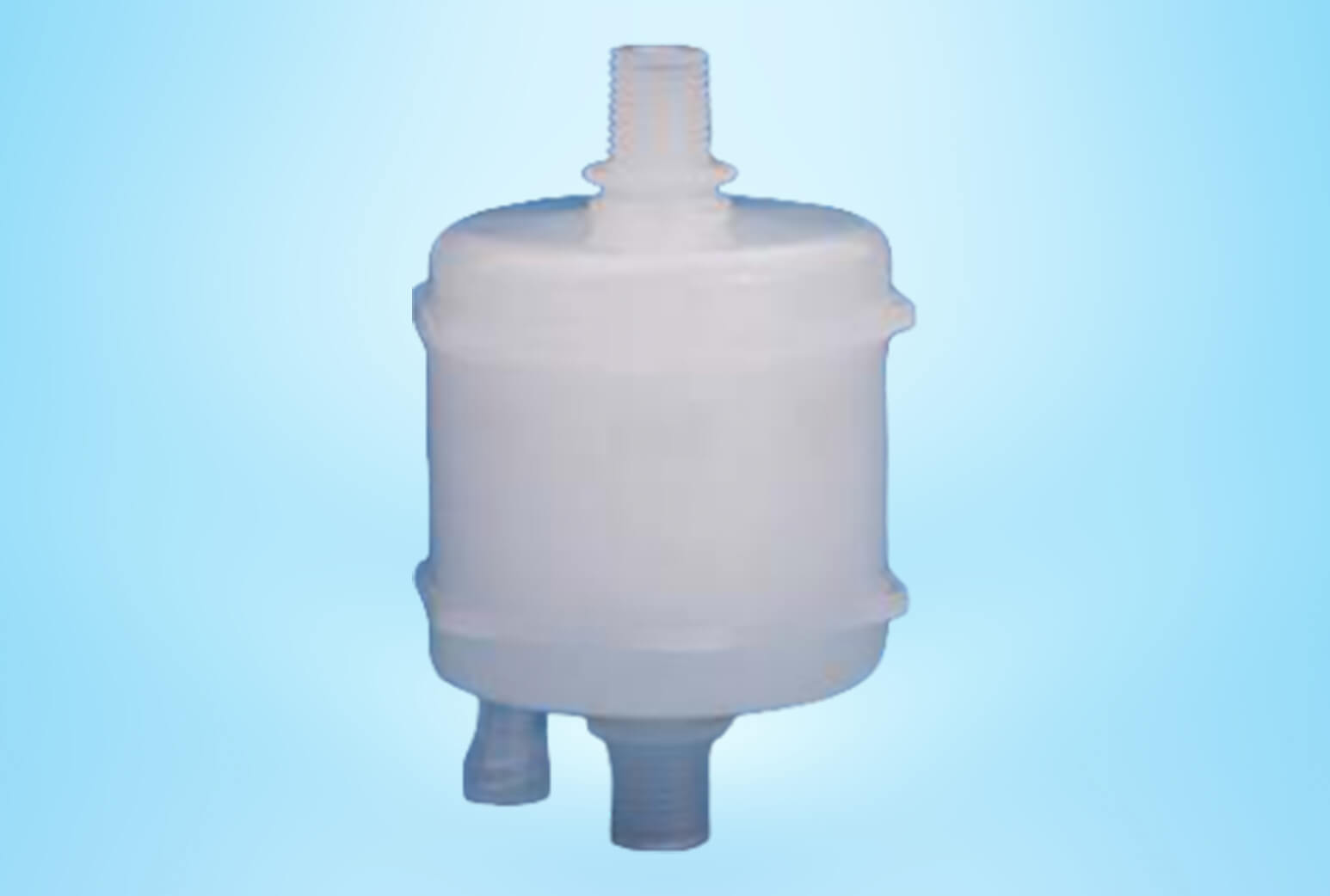

Steri-PRO CP Series Capsule Filter
TRINITY Steri-PRO CP Series Capsule Filter is a compact filter assembly that is designed for filtration of small volume batches. It's applications are Small Volume Parenteral (SVP), Pharmaceutical / Biological Fluids, Ophthalmic solutions, filtfration of developer, Fine Chemicals, Coatings and DI water.
Steri-PRO Capsules provide excellent retention of particulate matter and bio-burden reduction / sterile filtration at relatively higher flow rates and offers consistent & reproducible filter performance. Steri-PRO Capsules are constructed from all Polypropylene body and hence provide superior chemical resistance & durability in process filtration applications.
KEY FEATURES & BENEFITS
- Body made from 100% virgin polypropylene
- High contamination retention at relatively higher flow rates
- Ideal for under 10 LPM flow rates
- Low hold-up volume
- Vent at Highest Point & Drain at Lowest point
- Disposable Compact design, easy to change out
- End caps and connectors are sealed by thermal bonding.
- High surface area design to increase filtration throughput.
- Manufactured in clean room environment.
SPECIFICATIONS
| Diameter |
2.5" |
| Length |
25" 4,5 6,8, 10" |
MATERIAL OF CONSTRUCTION
|
Material |
| Support Material |
Polypropylene |
| Filter Media |
Polyethersulfone |
PTFE |
PVDF |
Nylon |
| Shell, Cage and End Caps |
Polypropylene |
HDPE |
SAFETY
| Bacteria Endotoxin |
<= 0.25 EU/mL |
| Bacterial Retention |
Samples retain a minimum of 107 cfu/cm?’ of (B. diminuta)
Brevundimonas diminuta as per modified ASTM F838,
current revision |
OPERATING CONDITIONS
| Maximum Differential Pressure |
60 PSI (4.2 Bar) @ 25°C |
| Maximum Operating Temperature |
80°C |
| Sterilization |
121°C for 30 minutes |
APPLICATIONS
- Semiconductor and Photovoltaic Industry
- TFT-LCD
- PCB
- Venting & Gas Filtration
- Beverage & Wine
- Pharmaceutical
- Industry Ultrapure Water
- Ophthalmic solutions
- SVP Manufacture
- SVP Manufacture
- Cosmetics
- Ophthalmic Lens Manufacturing
