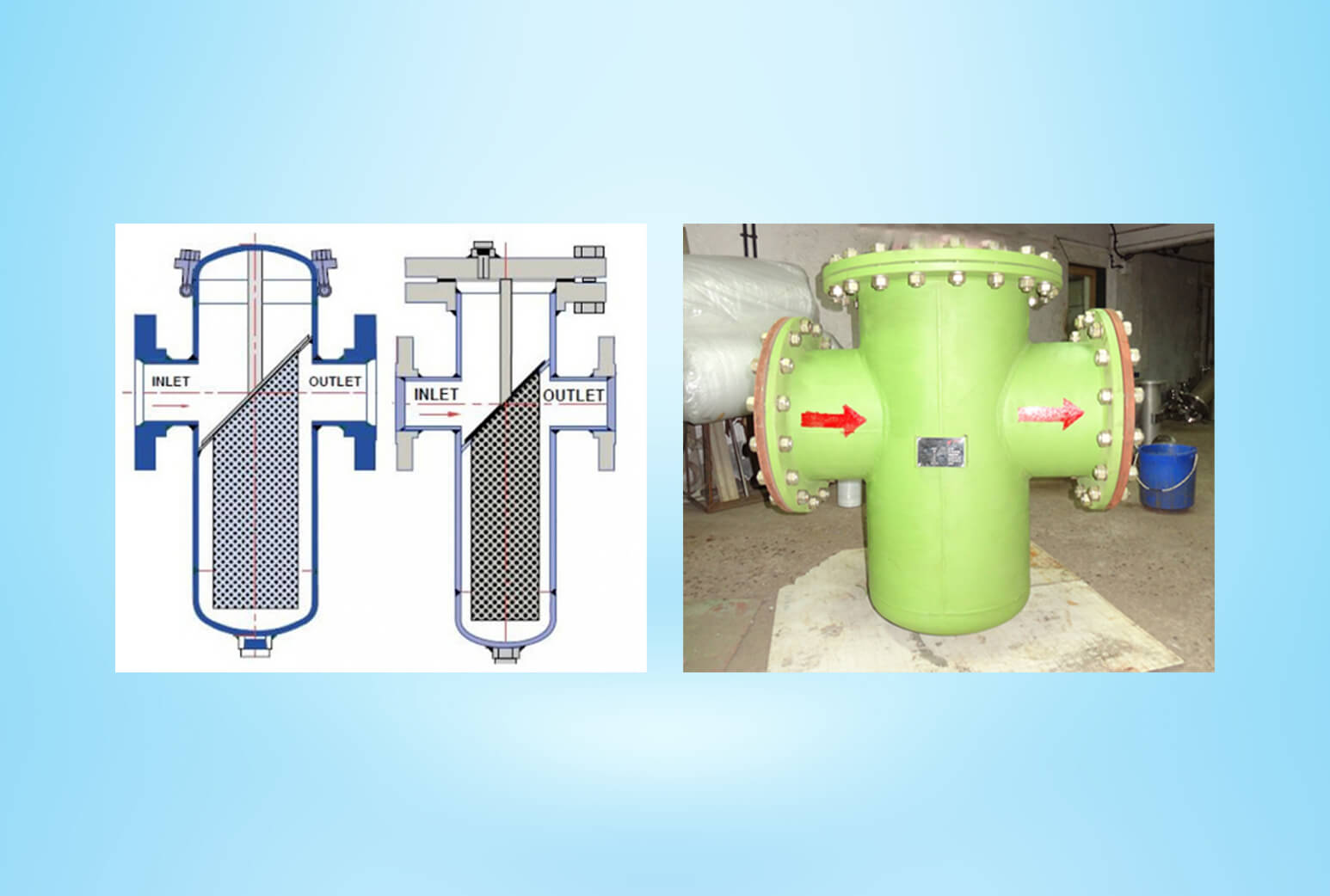

Trinity Fabricated basket strainer are designed and manufactured according to client's application. The welded construction of the strainer, with stands various range of flow and pressure. Piping sizes available are 1.5” to 48” for 150# and 300#. The basket size is tailored to hold sufficient solid waste for enough time between clean outs. Customized flange sizes are done to fit for exiting pipe. These strainers are installed upstream of equipment like pumps, control valves, and traps, keeping potentially corrosive or damaging debris from making its way down the line.
| Size | 40 NB to 1000 NB |
| Body | CS, MS, SS 304, SS 304L, SS 316, SS 316L. |
| Element | SS 304/L, SS 316/L |
| Flow Design | Flow In to Out (FITO) |
| Design Code | GEP (standard), ASME (optional) |
Trinity Fabricated Y strainer is designed specific to application required. The pipe size for Fabricated Y Strainer ranges from 2 to 24™ in Class 150 and Class 300. Screen size can be tailored to hold sufficient solids for required time between cleanouts. Customized flange sizes for perfect fit for exiting piping, also for required clean pressure drop. Hinge covers are used for quick opening (optional).
| Body | CS, MS, SS 304, SS 304L, SS 316, SS 316L. |
| Element | SS 304/L, SS 316/L |
| End Connection | Butt Welded, Flanged |
| Design Code | GEP (standard), ASME (optional) |
