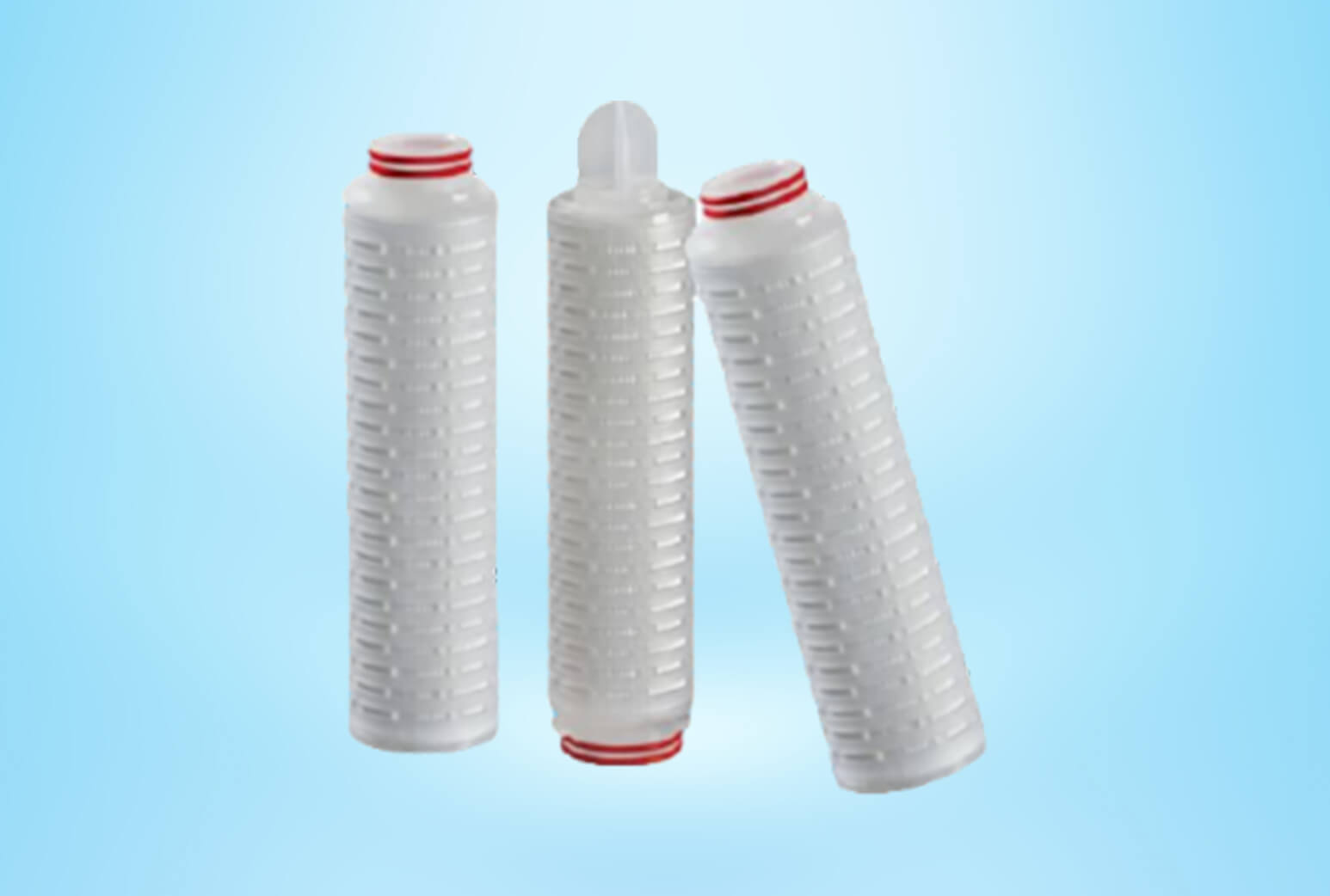

Steri-PRO PE Series PES Membrane Filters
Trinity Steri-PRO PE Series Sterile PES Membrane Filters having Asymmetric Polyethersulfone membrane has advantage of high flux rate and higher flow capacity. These filters are sealed using thermal bonding process, contfains no adhesive and surfactant.
The components of PES sterile membrane filters includes of Polyethersulfone, Polypropylene and Silicone/EPDM, provide broad chemical compatibility. These filters are 100% integrity tested and validation guide for compliance with regulatory requirement is available. Trinity PE Series PES Sterile Membrane Filters are manufactured from materials listed in Title 21 of the USA FDA Code of Federal Regulations (CFR 21).
Steri-PRO PE series PES Membrane Filter can ensure integrity at temperature up to 125°C due to high strength of Polyethersulfone membrane structure.
MATERIAL OF CONSTRUCTION
| Filter Membrane |
Polyethersulfone |
| Support |
Polypropylene |
| Cage & Core |
Polypropylene |
| ‘O’ Ring |
EPDM / Silicone |
| Adapter / Insert |
SS 316 |
OPERATING PARAMETERS
| Max Operating Temperature |
82°C |
| Recommended Change out Differential Pressure |
35 PSID |
| Autoclave |
121 °C, 30 Min. Multiple Cycles |
| Steam In-Place |
121 °C, 30 Min. Multiple Cycles |
FILTER DIMENSIONS
| Outer Diameter |
68.5 mm |
| Inner Diameter |
33.0 mm |
| Filtration Area |
>0.63m2 |
APPLICATIONS
- Culture Media
- Buffers
- Large Volume Parenterals
- Ultrapure Water
- Biological Fluid & Oral Drugs
- Wine & Alcohols
- Solvents
- High Purity Chemicals
