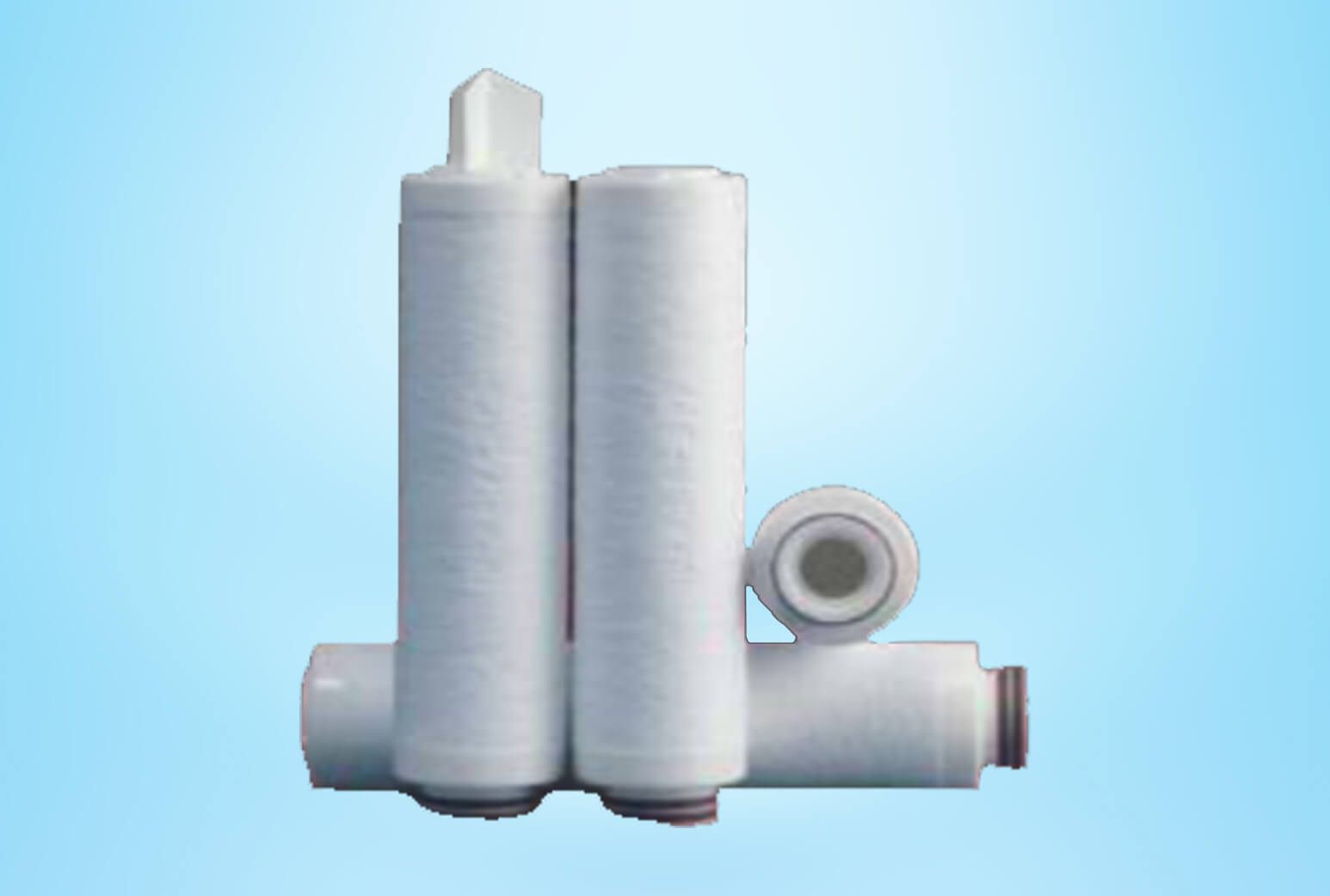

For superior filtration performance across diverse industrial applications, look no further than spun bond depth filter cartridges. Engineered with advanced spun bond technology, these cartridges excel in dirt-holding capacity and consistent particle retention. From water to petrochemicals, photographic chemicals, and oils, they deliver reliable operation and an extended service life.
Key Features and Benefits :
Why Choose Spun Bond Depth Filter Cartridges?
Choosing spun bond depth filter cartridges means investing in quality and reliability. These cartridges are designed to meet stringent filtration requirements and exceed industry standards. Their robust construction and effective filtration capabilities make them a preferred choice for industries where filtration performance is critical.
Spun bond depth filter cartridges represent a superior choice for industries seeking advanced filtration solutions. With their high dirt-holding capacity, longevity, and consistent performance, these cartridges deliver unparalleled filtration efficiency across various applications. Invest in quality filtration—choose spun bond depth filter cartridges for your industrial needs.
| Media | Polypropylene |
| Structure | Coreless, Polypropylene |
| End Caps | Polypropylene |
| Removal Ratings | 0.5, 1,3, 5,10, 25, 50, 100 micron |
| End Connection | DOE / SOE |
| Oring / Gaskets (SOE) | Silicone, Buna N, EPDM, Viton ® |
| Outside Diameter | 2.5" (63 mm) |
| Inside Diameter | 1.1" (28 mm) |
| Nominal Length | 9.75,10, 20, 30 & 40 |
| Max Operating Temperature | Polypropylene - 80°C Cotton with SS core - 120°C Heat purified Glass - 250°C |
| Recommended Change out differential pressure | 35 PSID |
| Grade | Removal Ratings (um) | Recommended |Flow Rates (GPM) |
|---|---|---|
| 02A | 0.2 | < 1 |
| 05A | 0.5 | 1 |
| 001 | 1 | 2 |
| 005 | 5 | 4 |
| 010 | 10 | 5 |
| 025 | 25 | 6 |
| 050 | 50 | 6 |
| 100 | 100 | 6 |
| 125 | 125 | 6 |
| 150 | 150 | 6 |
| 200 | 200 | 6 |
| 350 | 350 | 6 |
