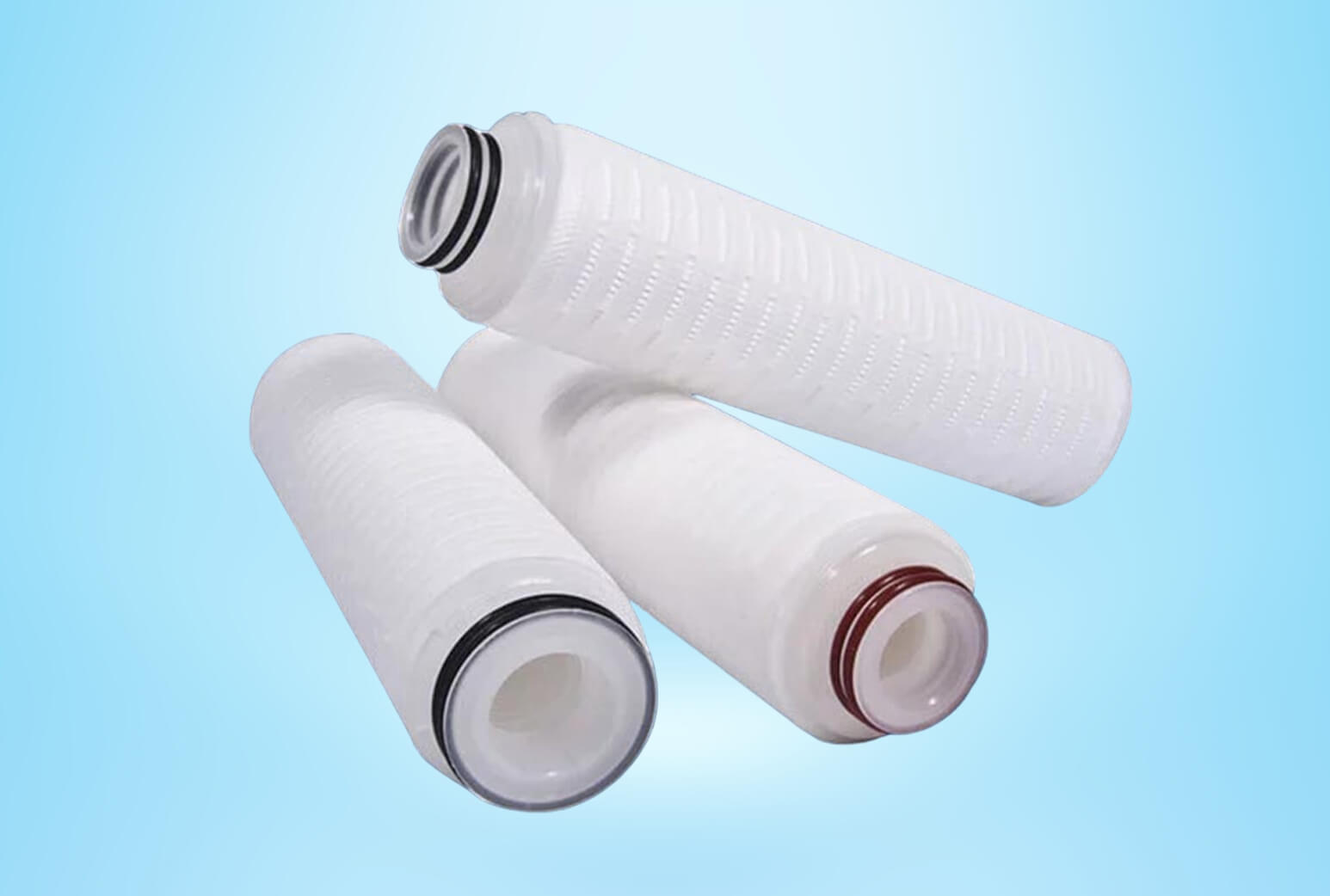

Trinity Steri-PRO PV Series PVDF (Hydrophilic Polyvinylidene Fluoride) Cartridge Filters are the higher level of aseptic cartridge filters. The optimized structure design makes maximum utilization of the membrane. PVDF Filters are widely used in the biomedical industry and other aseptic filtration while guaranteeing low cost and performance farmore than similar products.
Trinity PVDF Filters are manufactured, tested, and packagedin acleanroom to ensure products cleanliness, and provide absolute retention based on liquid bacteria challenges. Trinity PVDF filters are 100% integrity tested before shipment, and arrives with a validation guide available for compliance with regulatory requirements.
Steri-PRO PV PVDF cartridge filters are sealed using thermal bonding process, with no adhesive and surfactant. The components of this filter include Polyvinylidene fluoride, Polypropylene and Silicone / EPDM, provide broad chemical compatibility, and low protein binding.
Steri-PRO PV Series PYDF Membrane Filters are manufactured from materials listed in Title 21 of the USA FDA Code of Federal Regulations (CFR 21). Hence, safe for food & beverages contact.
| Filter Media | Single layer Polyvinylidene fluoride membrane; Double layer Polyvinylidene fluoride membrane |
|---|---|
| Support Media | Polypropylene |
| Core | Polypropylene / Polysulfone |
| Cage & End Caps | Polypropylene |
| Adapter | Polypropylene |
| 'O’ Rings/ Gaskefts | EPDM, Silicone, Buna N, Viton, Teflon Encapsulated Viton |
| Inner Diameter | 1.3inch (31 mm) |
| Outer Diameter | 2.7 inch (68.5 mm) |
| Nominal Length | 5", 10", 20", 30", 40" |
| Filtration area | > 0.55m" (Double layer), >0.62m" (Single Layer) |
| Max Operating Temperature | 80°C @ 1.7 bar |
| Maximum Differential pressure | 5.2 bar (forward)- at 25° C 2.1 bar (reverse)- at 25°C |
| Autoclave | 121°C, 30 min, Multiple cycles |
| Steam-In-Place | 121°C, 30 min, Multiple cycles |
| Bacteria Endotoxin | < 0.25 EU/mL |
| Extractables | < 40 mg/10inch (Double layer), < 20 mg/10inch (Single layer) |
