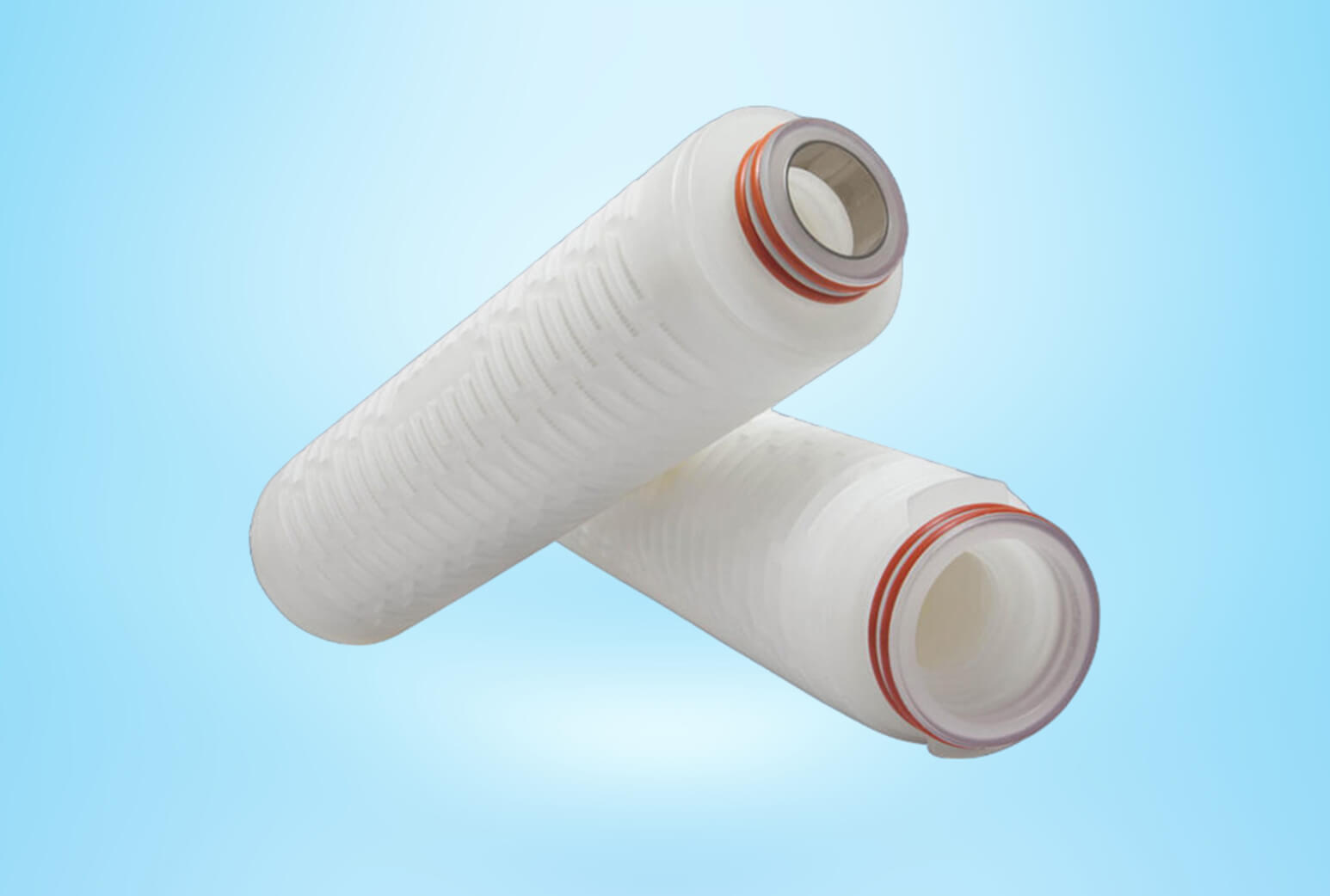

Trinity Steri-PRO PT Series PTFE (Polytetrafluoroethylene) Sterilizing grade Cartridge Filters are carefully constructed for the Bio-Pharma, Beverage and Fine Chemical Industries to provide secure &reliable Filtration. Trinity PT Series PTFE Filters offers the highest level of assurance of chemical compatibility and filtfration performance in aggressive chemicals, prolonged hot air service and other severe process conditions.
Steri-PRO PT Series PTFE Filters offer superior flow rates and long service life. The highly porous membrane is inherently hydrophobic and offers maximum chemical compatibility with minimal extractable in a wide range of fluids and applications. Support components are all-polypropylene, and all-PTFE option is also available.
Trinity Steri-PRO PT Series PTFE Membrane Filters are manufactured from materials listed in Title 21 Listed of the USA FDA Code of Federal Regulations and are safe for food contact applications.
| Filter Media | Hydrophobic PTFE Membrane |
| Support Media | Polypropylene |
| Core, Cage & End Caps | Polypropylene |
| Internal Support Ring | Stainless Steel |
| ‘O’ Rings/ Gaskets | Buna N,, EPDM, Silicone, Viton |
| Inner Diameter | 1.3inch (33 mm) |
| Outer Diameter | 2.7 inch (69 mm) |
| Nominal Length | 5", 10", 20", 30", 40" |
| Max Change out Differential pressure | 2.5 bar |
| Sterlization | Autoclave - 30 mins at 126° C Steam - 30 mins at 121°C Multiple Cycle |
